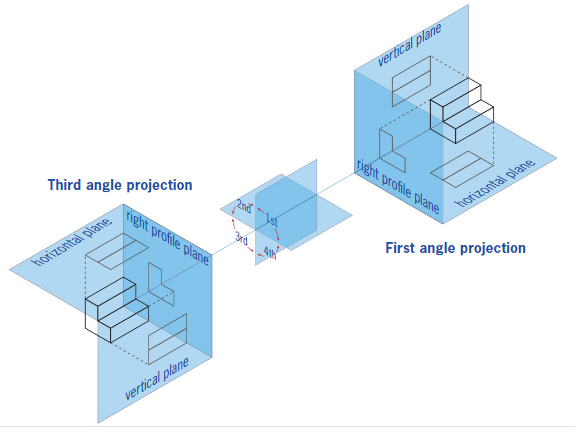

Quadrants and Angles of Projection The principal planes of projection intersect at right angles. The angles between the vertical and the horizontal planes are called the angles of projection. Only first angle and third angle projections are used in practice.
